Introducing the XRC7269S which has Uprated Speed and Flow of what was previously named XR10569S
Compressor wheel - 72mm Inducer / 99mm Exducer.
Turbine Outlet - 69mm
119lb/Minute Flow Rating.
550-1150HP Applications.
Variable preload angular contact bearings.
Twin gas ring seals at the compressor and turbine.
High strength, lightweight stainless steel center housing.
Full hydraulic damping of the rotating assembly.
Integrated oil contaminate filter.
M62 race material allows higher temperature operation.
Metallic bearing cages.
Product Information
The revolutionary UHF™ aero XR69S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30%, giving the fastest response we have ever observed at this power level.

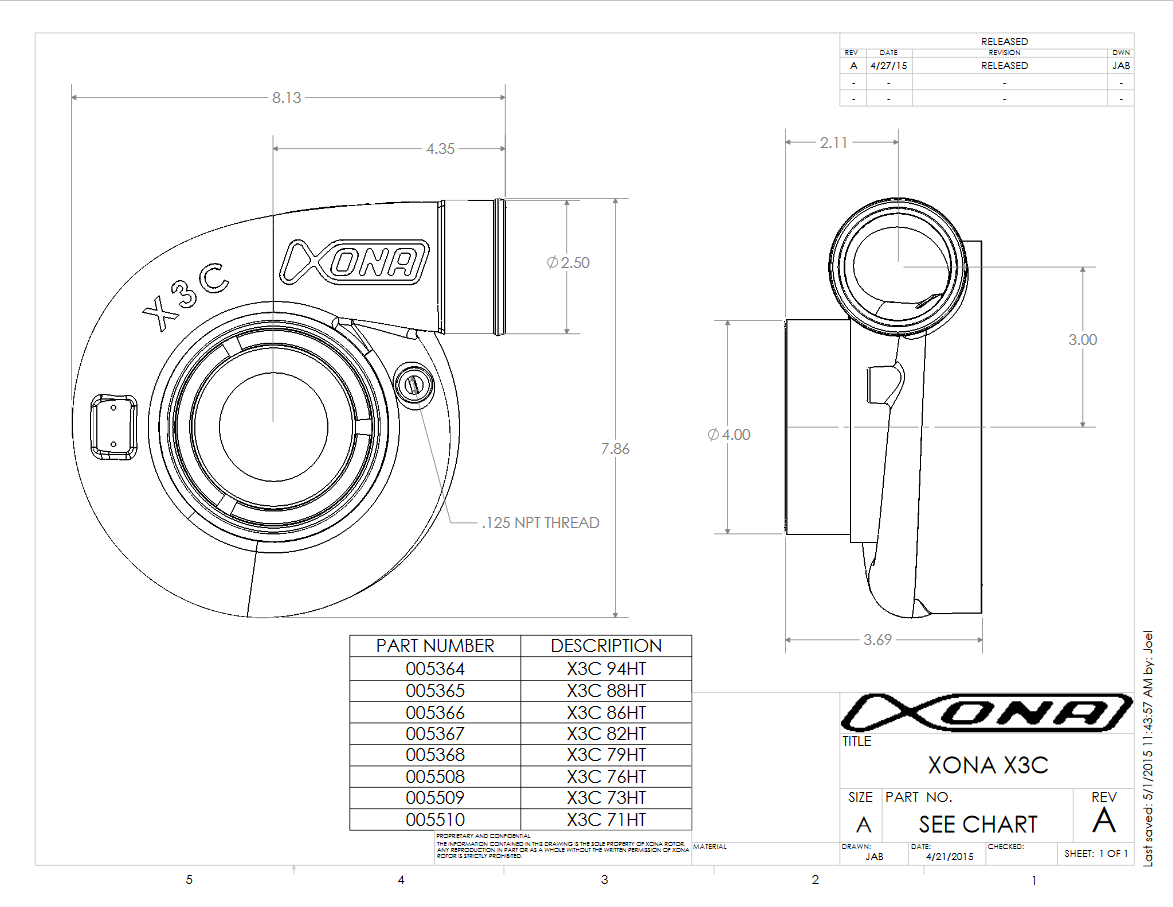

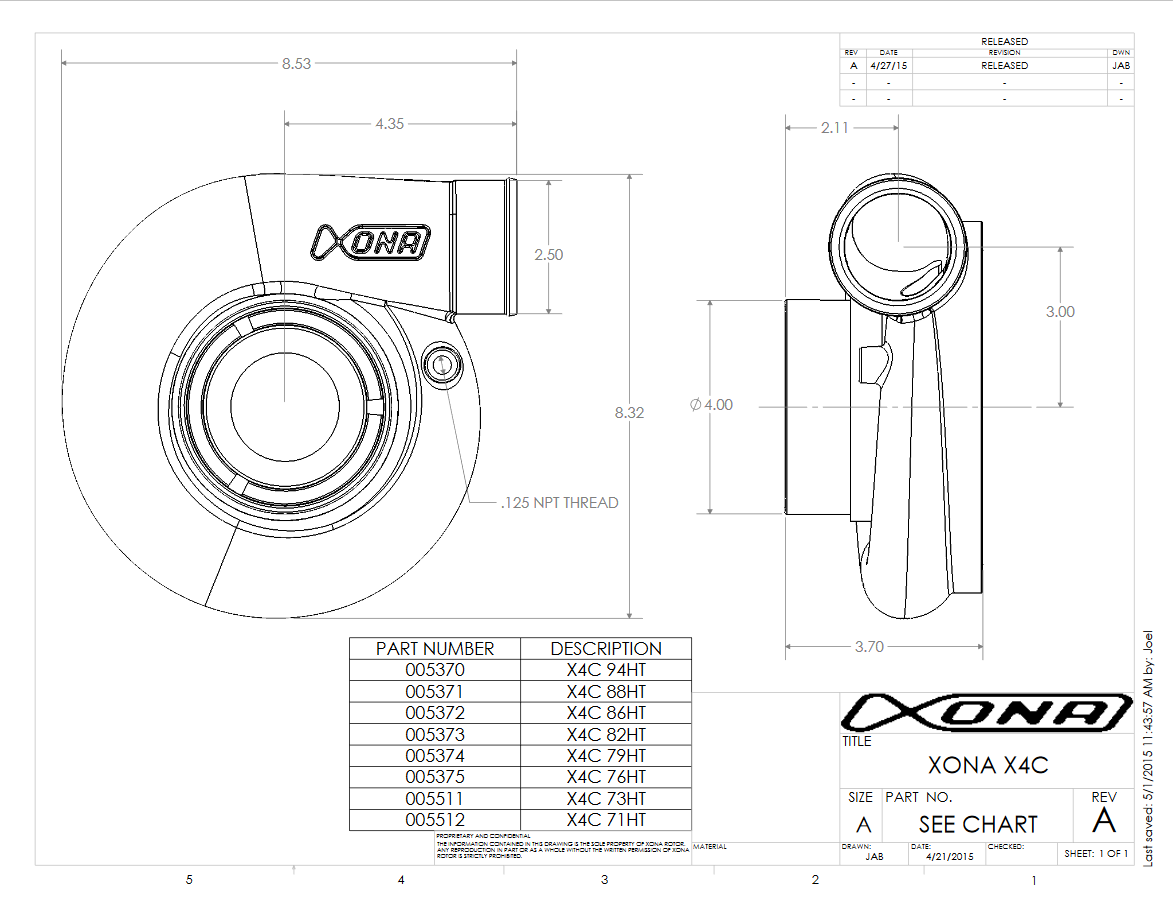

This turbocharger is available in either an X3C or X4C cover, depending on your size and space constraints; dimensions for both covers are included in the product images.
