Introducing the XRC5251S which has Uprated Speed and Flow of what was previously named XR5451S
Compressor wheel - 52mm Inducer / 71mm Exducer.
Turbine Outlet - 51mm
60lb/Minute Flow Rating
280-600HP Applications
Variable preload angular contact bearings
Twin gas ring seals at the compressor and turbine
High strength, lightweight stainless steel center housing
Full hydraulic damping of the rotating assembly
Integrated oil contaminate filter
M62 race material allows higher temperature operation
Metallic bearing cages
Product Information
The revolutionary UHF™ aero XR51S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30% giving the fastest response we have ever observed at this power level.

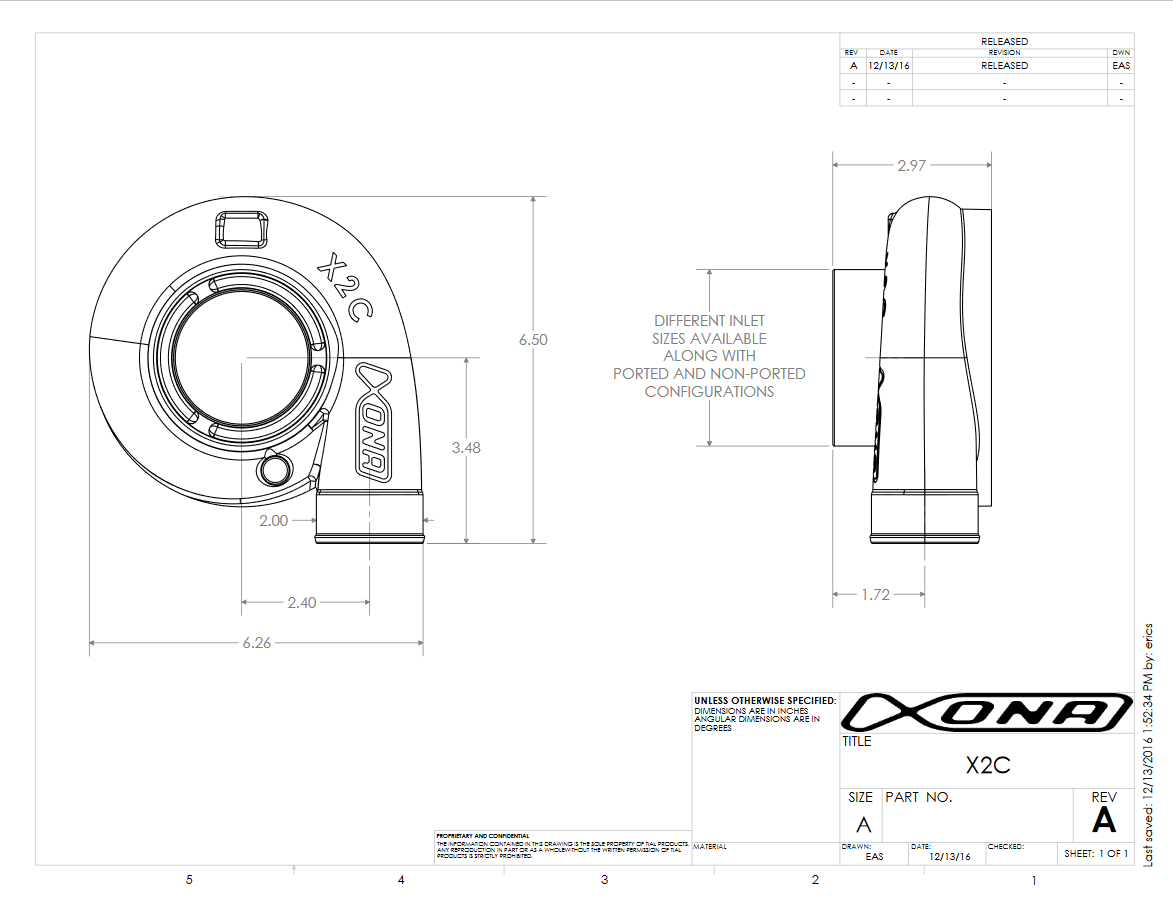

This turbocharger is available in an X2C compressor cover.
