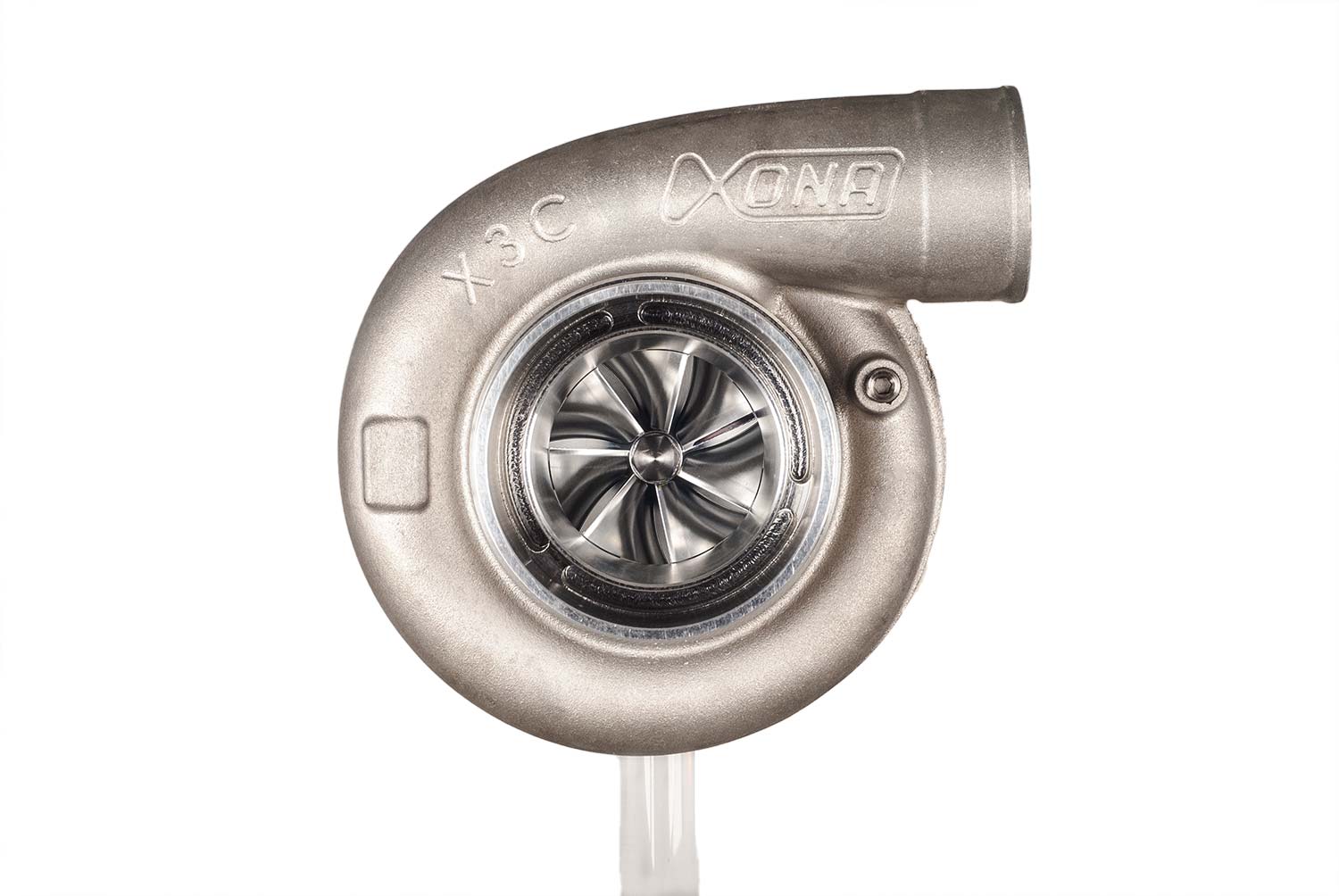

Introducing the XRC6864S which has Uprated Speed and Flow of what was previously named XR9564S
Compressor wheel - 68mm Inducer / 94mm Exducer.
Turbine Outlet - 64mm
108lb/Minute Flow Rating
550-1050HP Applications
Variable preload angular contact bearings
Twin gas ring seals at the compressor and turbine
High strength, lightweight stainless steel center housing
Full hydraulic damping of the rotating assembly
Integrated oil contaminate filter
M62 race material allows higher temperature operation
Metallic bearing cages
Product Information

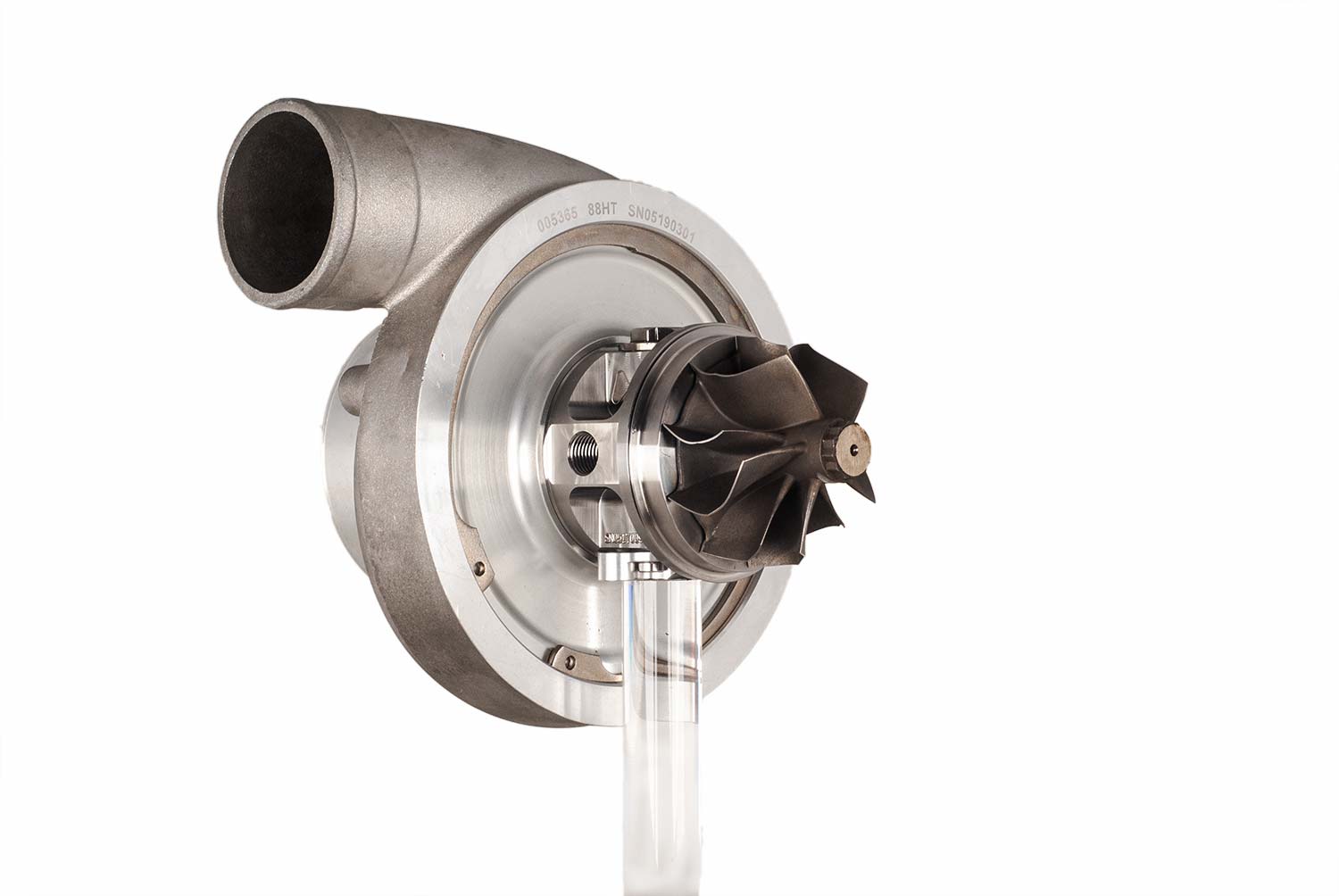

The revolutionary UHF™ aero XR64S turbine delivers the greatest overall flow possible while simultaneously reducing inertia more than 30% giving the fastest response we have ever observed at this power level.

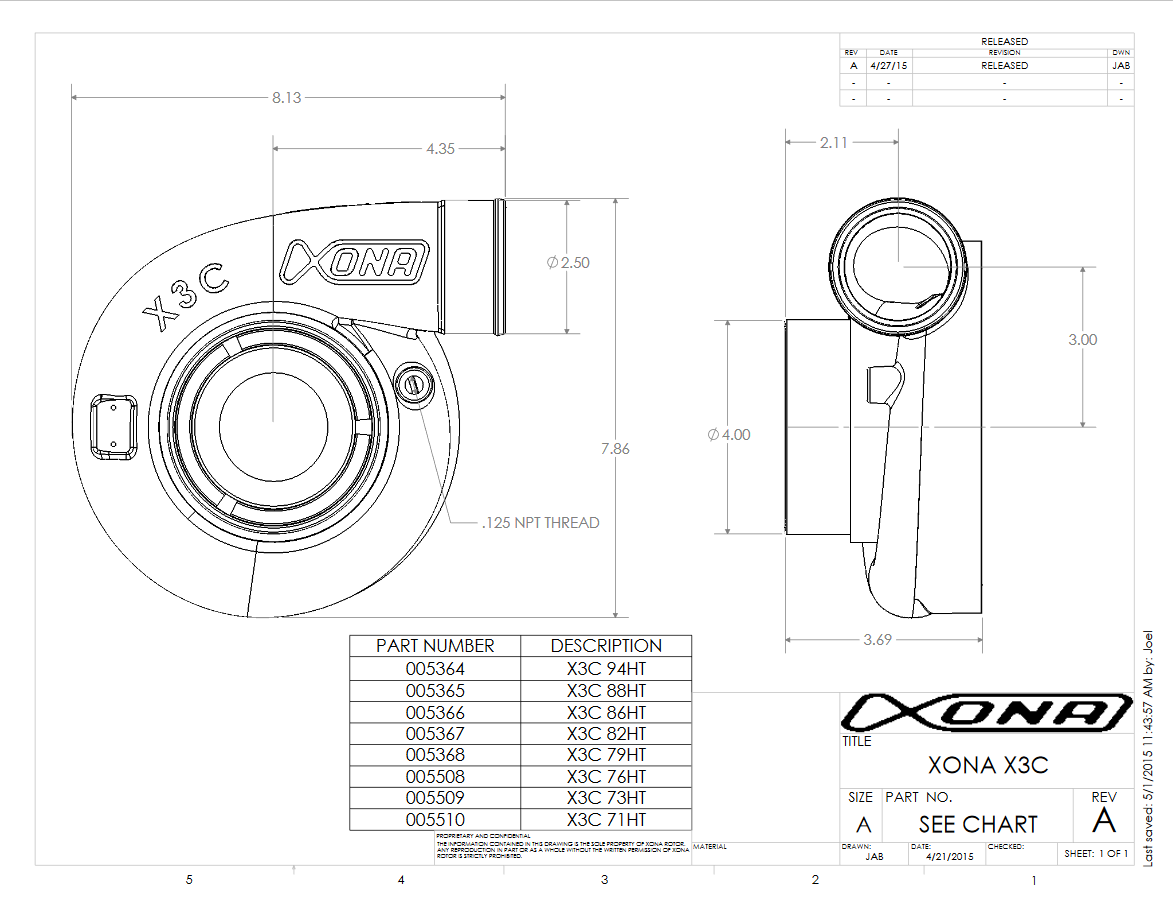

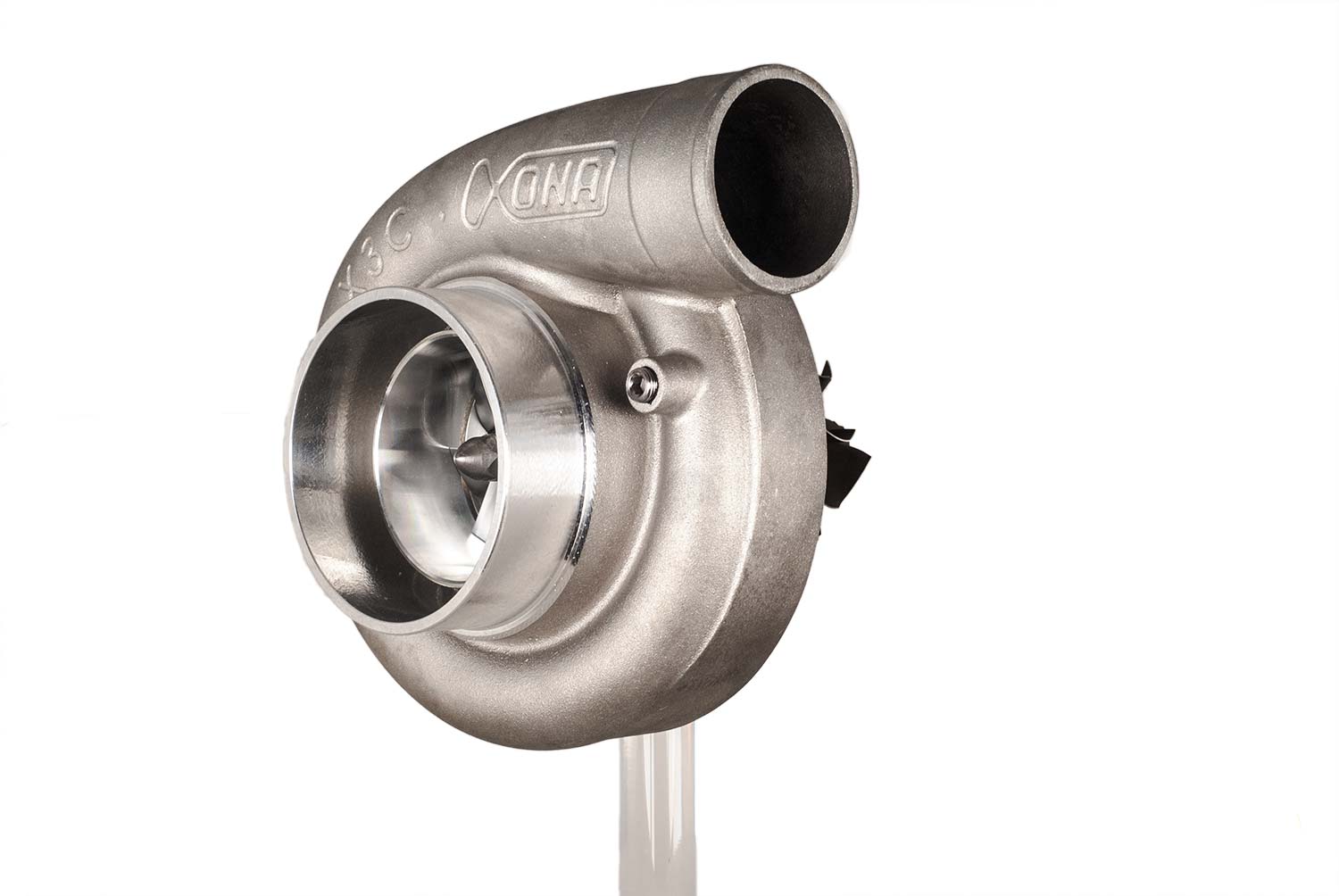

This turbocharger is available in an X3C cover, dimensions for this cover is included in the product images.
